Model Number: TE08-0115

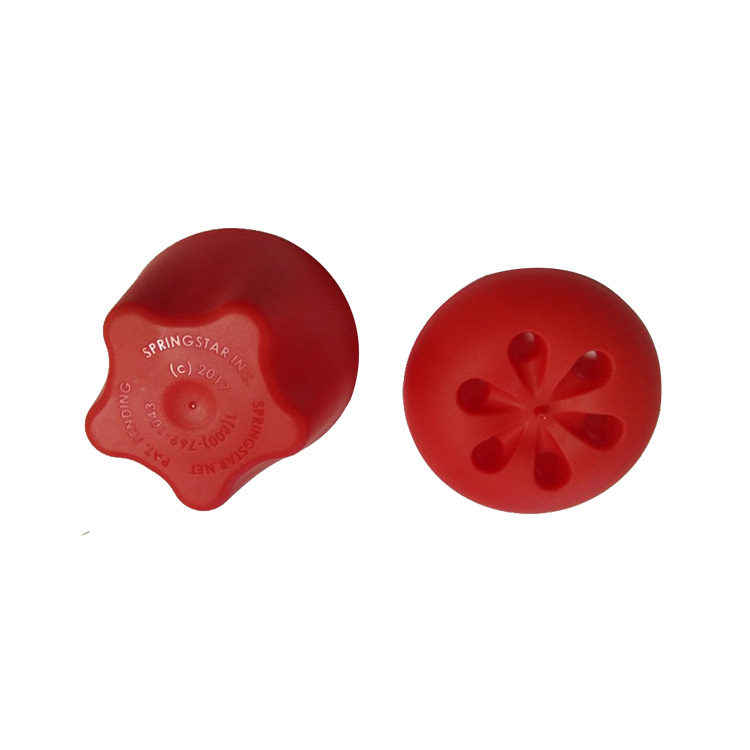

Product Name: Fruit Fly Trap
Brand Name: TTM

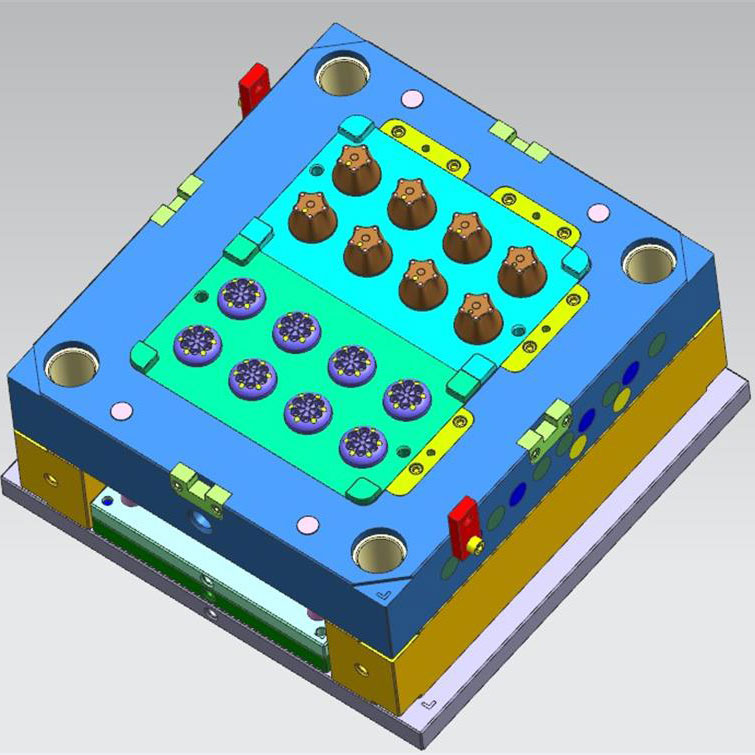

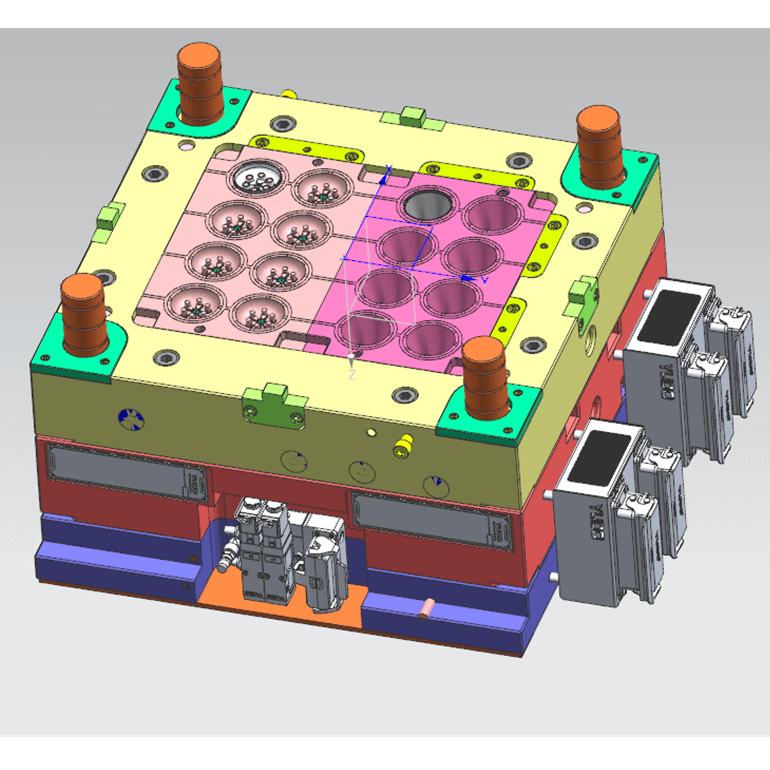

Mould Type: Plastic Injection Mould
Mould Base: S50C
Mould Material: H13
Mould Cavity: 8+8
Injection: 16pcs Yudo valve gate
Mould Life: 300,000shots
Surface: Polish #600
Plastic Parts Material: PP
Lead Time: 5weeks
Basic Information:
Brand | TTM |
Mould Base | LKM, HASCO, DME, C50 standard mould base |
Mould Material | H13, 1.2344, 1.2738, P20, 45#, etc., according to customers’ requirement. |
Mould Standard | HASCO, DME, MISUMI, LKM, etc. |
Product Material | ABS, PP, PC, PA, PA66, POM, etc. |
Runner | Cold/Hot Runner |
Gate Type | Side gate, sub gate, pin point gate, edge gate, etc. |
Mould Size(min) | 150*150mm |
Mould Size(max) | 1600*1200mm |
Mould Weight | 50~15,000 kg |
Injection Machine Type | 80~1500ton |
Certification | ISO9001:2015 |
Lead Time | 3~6weeks according to the product |
