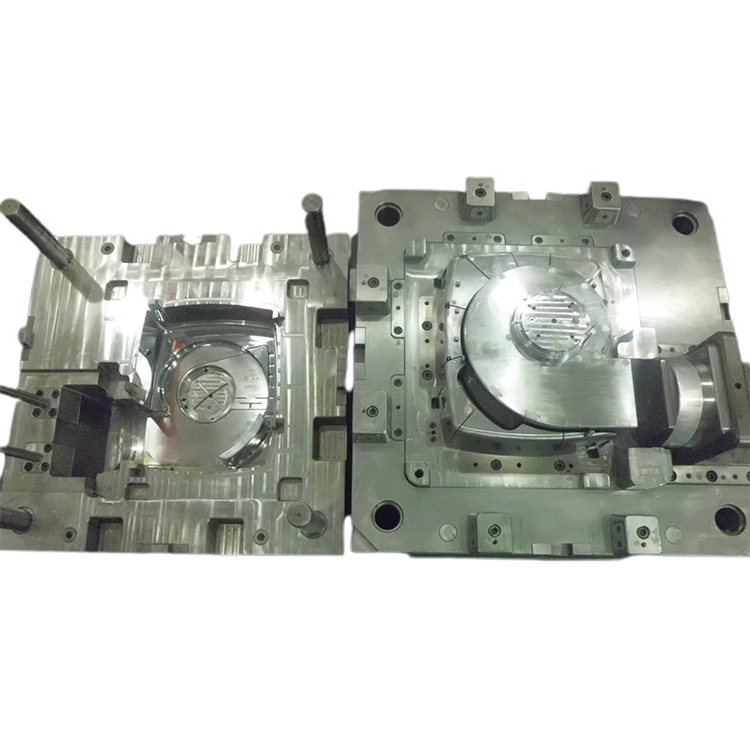

Engine machine mold

Engine machine mold

Model Number: TE06-051

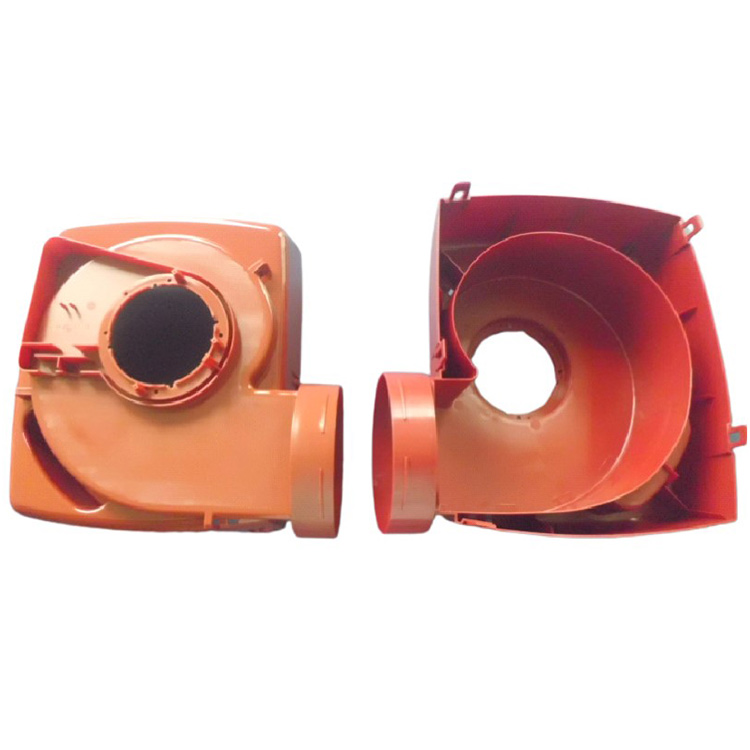

Product Name: HYGRA Mold for Engine

Brand Name: TTM

Mould Type: Plastic Injection Mould

Mould Base: 1.1730

Mould Core and Cavity: 1.2738

Injection: Sub Gate in Part

Mould Cavity: 1*1

Surface: EDM VDI

Core: YS Texture

Mould Life: 100,000

Mould Size: 760*710*1000 mm

Weight: N.W.: 2300KG

Plastic Parts Material: PP

Lead Time: 6 weeks

Basic Information:

Brand	TTM
Mould Base	LKM, HASCO, DME, C50 standard mould base
Mould Material	H13, 1.2344, 1.2738, P20, 45#, etc., according to customers’ requirement.
Mould Standard	HASCO, DME, MISUMI, LKM, etc.
Product Material	ABS, PP, PC, PA, PA66, POM, etc.
Runner	Cold/Hot Runner
Gate Type	Side gate, sub gate, pin point gate, edge gate, etc.
Mould Size(min)	150*150mm
Mould Size(max)	1600*1200mm
Mould Weight	50~15,000 kg
Injection Machine Type	80~1500ton
Certification	ISO9001:2015
Lead Time	3~6weeks according to the product

Our Production Scope:

* Plastic injection mold with tolerances up to ±0.02mm.

* 2K/Dual-component molds

* Over Molding

* Gear Mould

* Die-Casting Mould

* Injection Molding

* Precision Machining

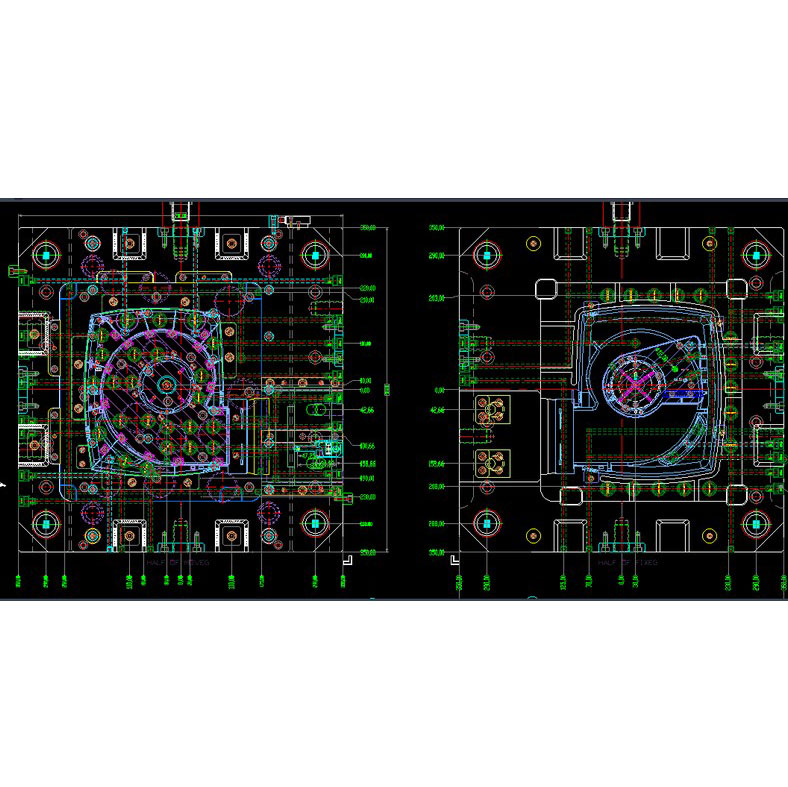

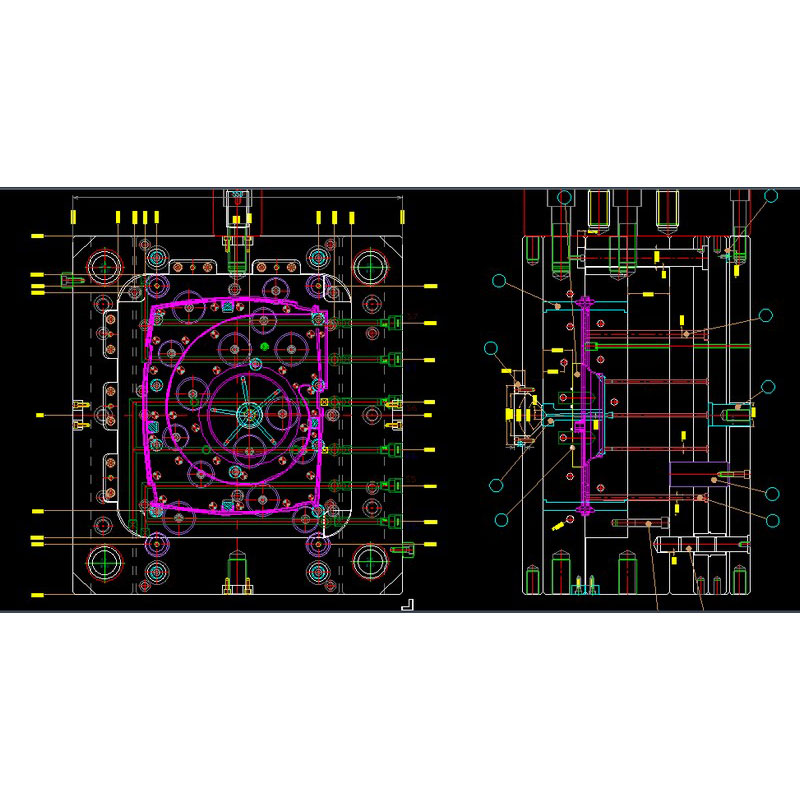

3D Design

It will take about 2-5 days for us to make 3D mould design , it will depend on how many sets of molds and how complexity of the mold.

If customer confirmed our 3D design, we 'll make 2D drawing with the BOM for our customer to check all of components steel material specification .

If the part is complexity , or the filling speed is hard to confirm, we could offer the mold analysis report to customer .

About your project:

Please kindly send me drawing files in step /igs /x-t format or photos which will include clear hanger structure and dimension with below information,We can sign NDA to protect your copyright.

Our project manager having the following tasks / responsibilities:

● Project planning, reporting, change management and customer-interface organize and manage design & production reviews, try-outs with delivery of samples , final approval and mould delivery.

● Progress and status reports are issued each week including photos.

● Communication is done in English with marketing dept.

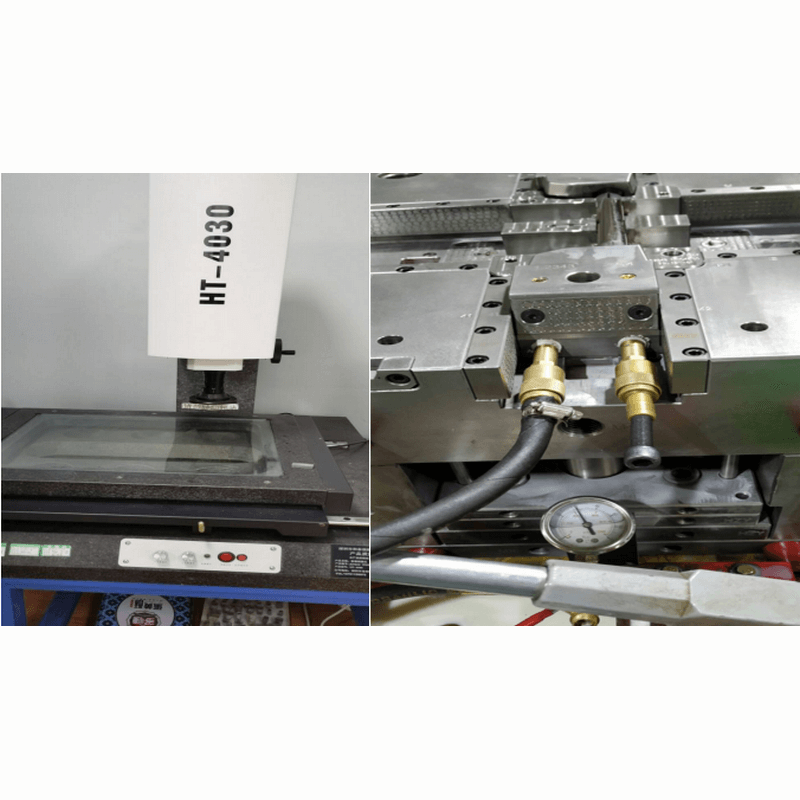

Quality Management

To be always able to deliver high quality mould an plastic products to our customers, the highest level of quality assurance is essential for us .

This starts with the contract review over the entire project cycle and ends with the shipping process.

We have therefore implemented a Quality Management System according to ISO 9001:2015 allowing for continuous improvement of our processes.
