Model Number: TE08-0602
Product Name: Multi Cavity Mold
Brand Name: TTM
Injection System: Cold Runner Mould
Mould Core and Cavity: 1.2379 (56~58 HRC)
Mould Base: S50C
Cavity: 2+2+4
Injection System: Cold Runner

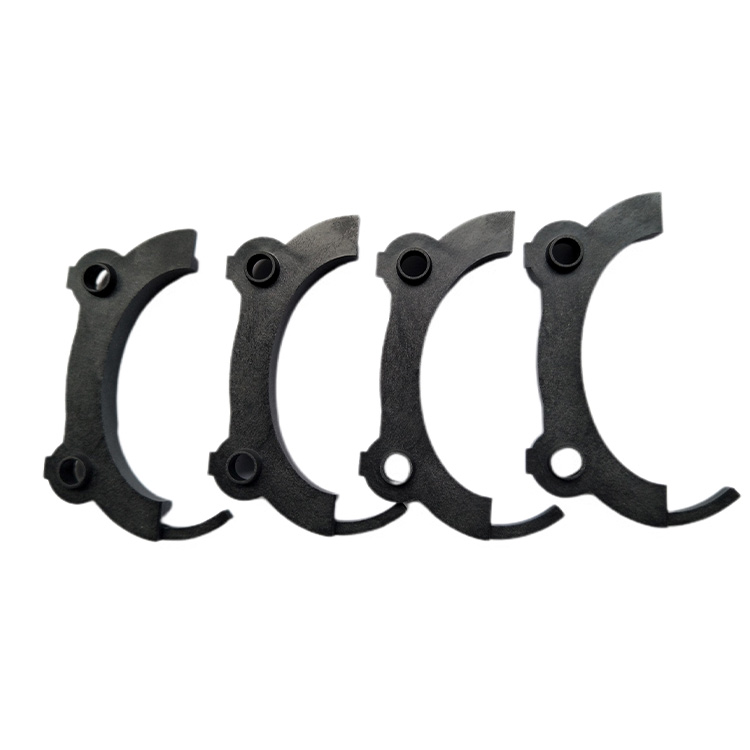

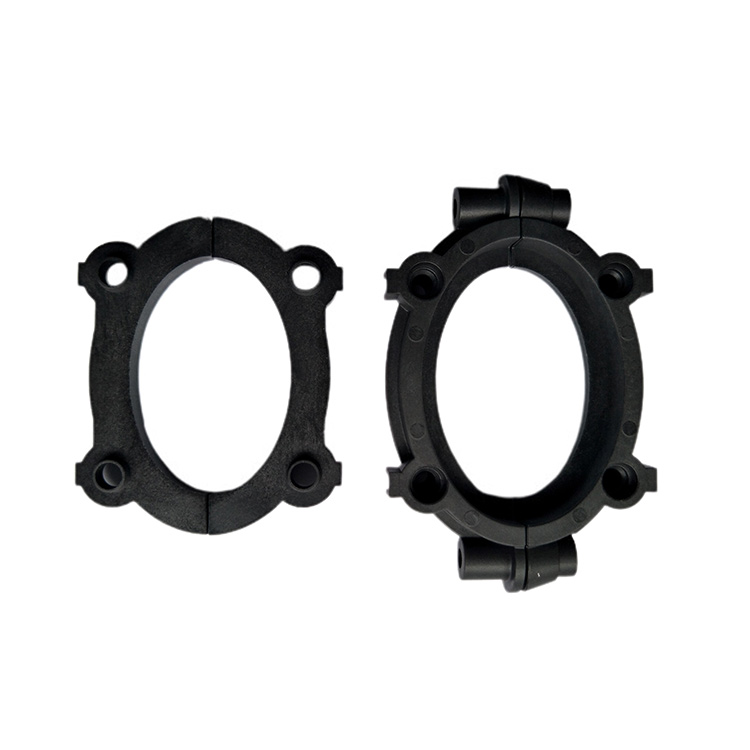

Plastic Parts Material: PA-6 + 30%GF
Mold Size: 600*500*800 mm
Weight: 860 kgs

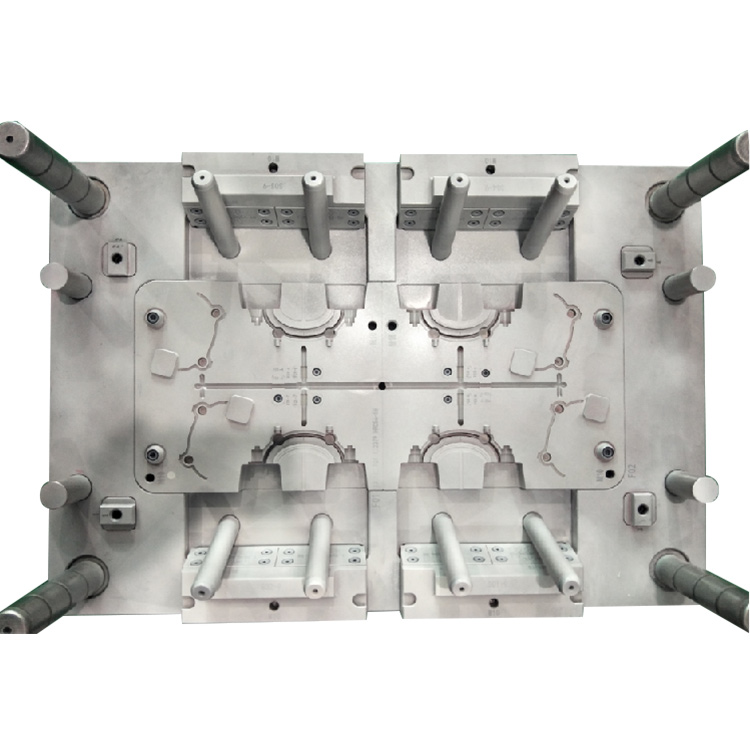

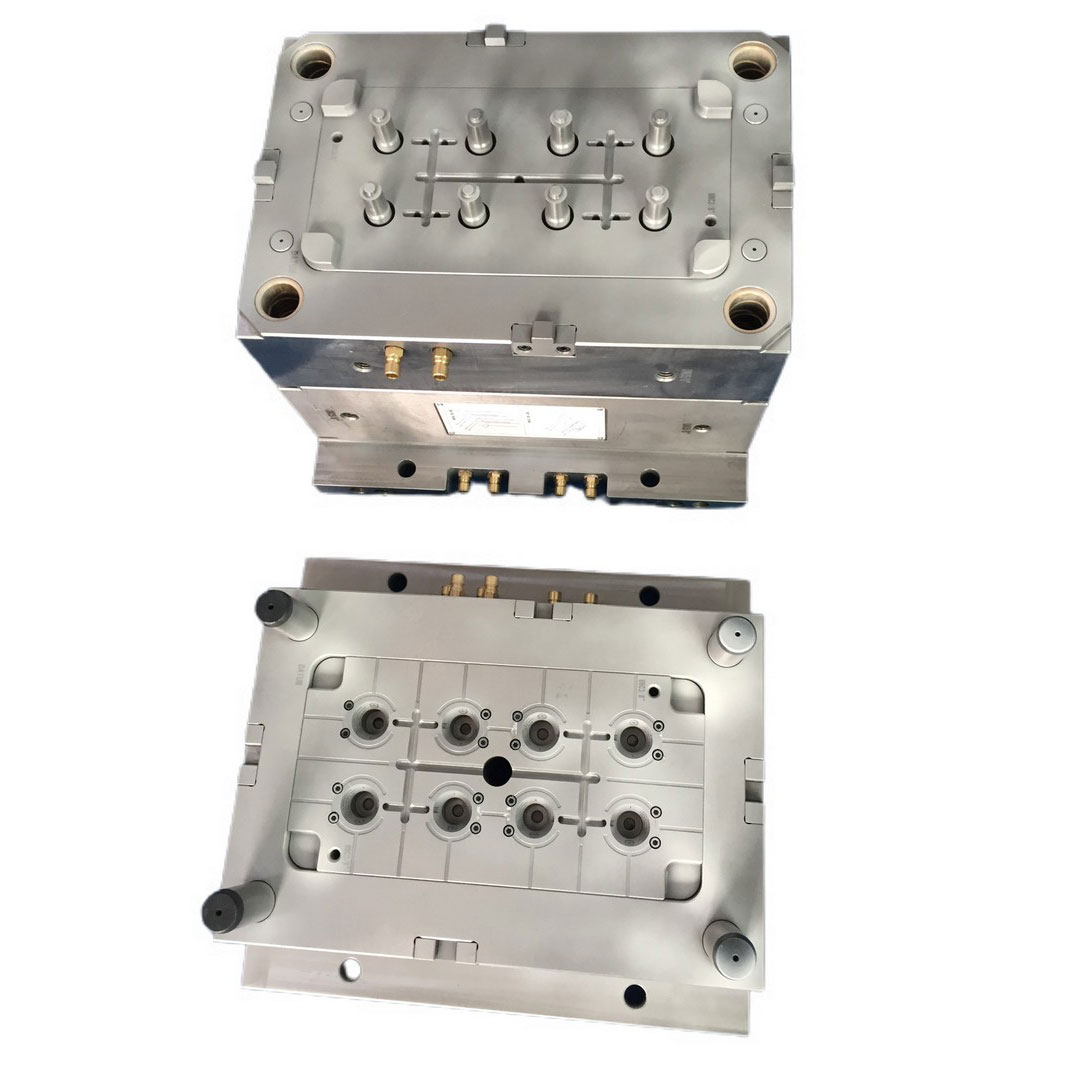

Multi-cavity Injection Mould
Brand | TTM |
Mould Base | LKM, HASCO, DME, C50 standard mould base |
Mould Material | H13, 1.2344, 1.2738, P20, 45#, etc., according to customers’ requirement. |
Mould Standard | HASCO, DME, MISUMI, LKM, etc. |
Product Material | ABS, PP, PC, PA, PA66, POM, etc. |
Runner | Cold/Hot Runner |
Gate Type | Side gate, sub gate, pin point gate, edge gate, etc. |
Mould Size(min) | 150*150mm |
Mould Size(max) | 1600*1200mm |
Mould Weight | 50~15,000 kg |
Injection Machine Type | 80~1500ton |
Certification | ISO9001:2015 |
Lead Time | 3~6weeks according to the product |
Talent Mould has the tools and talent to support your products development process. We are ready to assist in your design process with a dedicated staff of engineers, with years of die casting mould and plastic injection mold experience. We could be the best OEM for our customer at automotive, medical, instrument, industrial equipment, smart device and many other fields.
Production Scope:
* Plastic injection mold with tolerances up to ±0.02mm.
* 2K/Dual-component molds
* Over Molding
* Gear Mould
* Die-Casting Mould
* Injection Molding

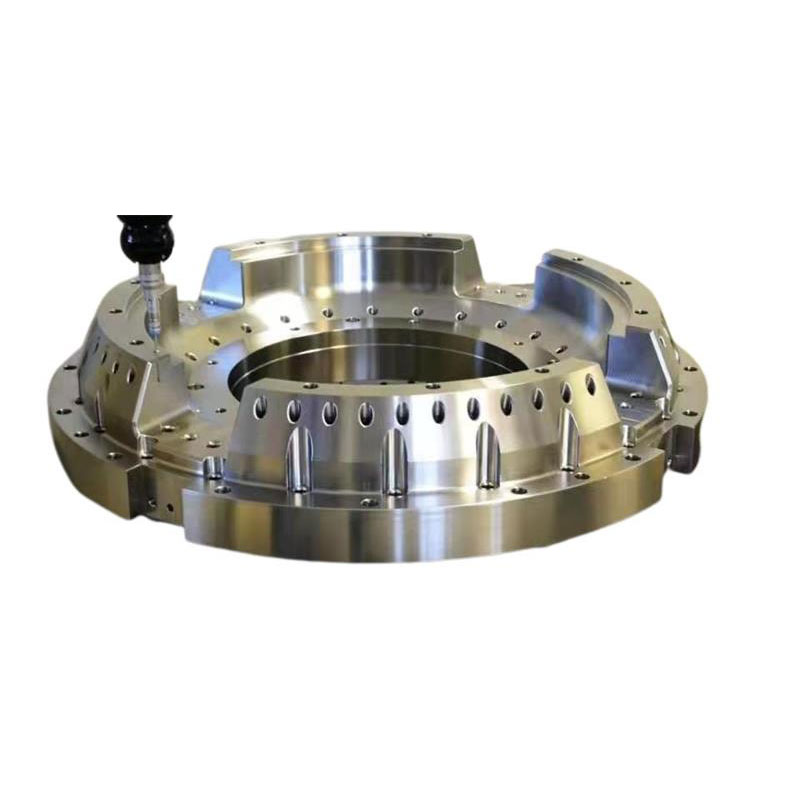

* Precision Machining
Turnkey Service:
* Silicone Molds
* Rapid-Prototyping & 3D Printing
* Surface Treatment
* Product Assembly

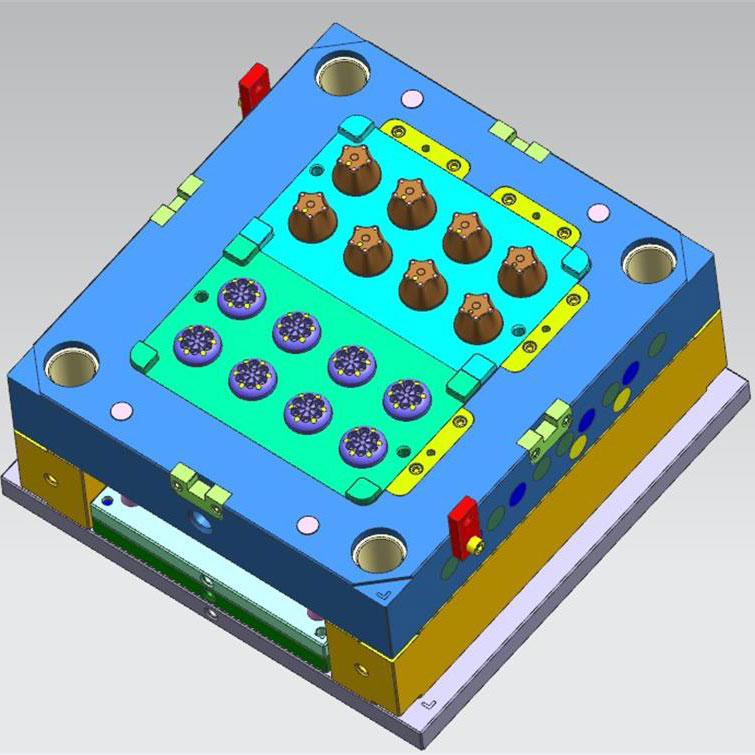

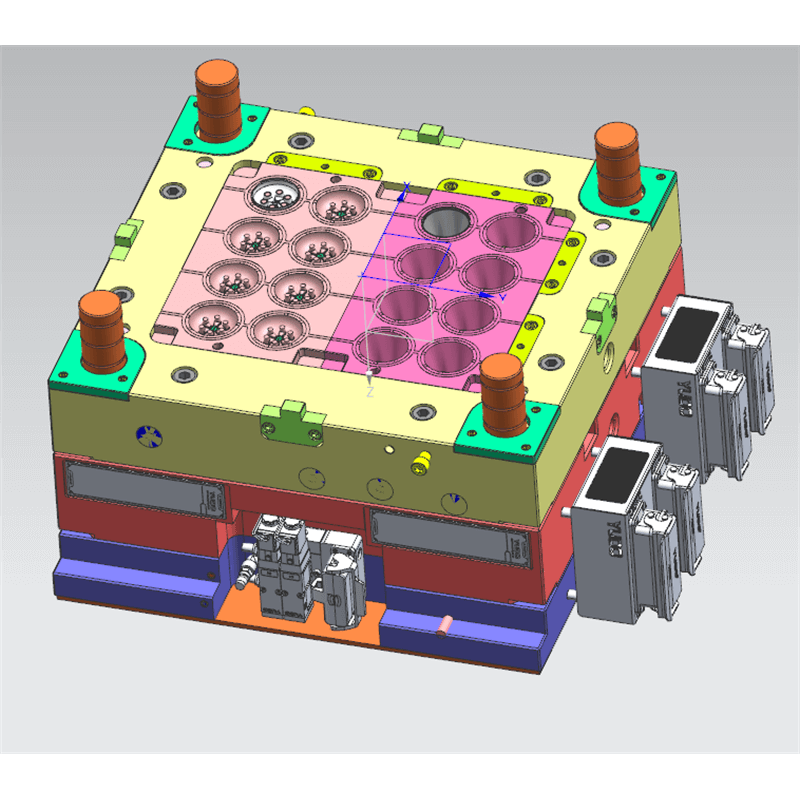

3D Design
It will take about 2-5 days for us to make 3D mould design , it will depend on how many sets of molds and how complexity of the mold.
If customer confirmed our 3D design, we 'll make 2D drawing with the BOM for our customer to check all of components steel material specification .
If the part is complexity , or the filling speed is hard to confirm, we could offer the mold analysis report to customer .
